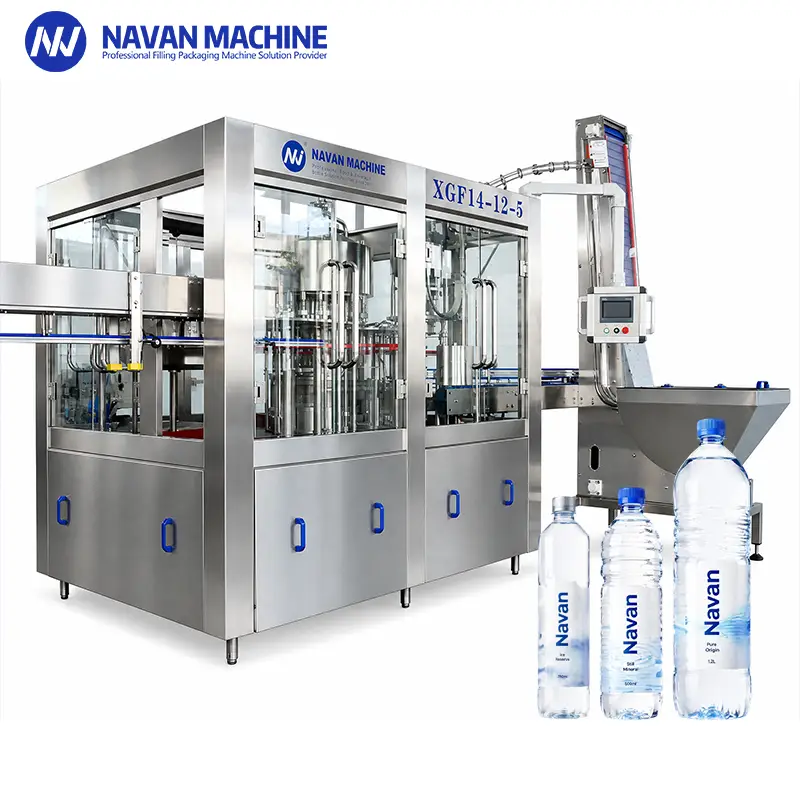

3-in-1 Water Bottling Machine XGF 14-12-5 | Rinsing, Filling & Capping for PET Bottles
Great fit for small water bottlers stepping up from manual or basic lines.
Model: XGF 14-12-5
Capacity: 5,000 BPH
Bottle Size: 100-200ml
Bottle Type: PET Bottles
* We will reply to you within a maximum of 24 hours
Bottles Rinsed Inside, Upside Down, Under High Pressure
Every bottle is inverted and rinsed internally with high-pressure water before it ever reaches the filling head, clearing out dust and loose particles from the inside surface.

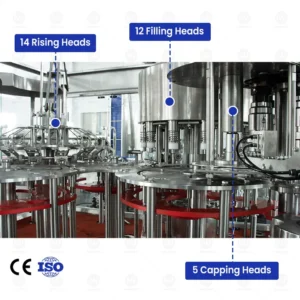

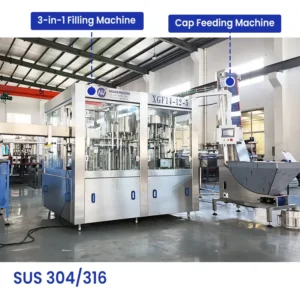

One Rinser-Filler-Capper Instead of Three Machines
Rinsing, gravity filling and capping run as one monobloc unit — one motor system, one control cabinet, and a shorter bottle path than running three separate machines in sequence.
Neck Clamps Stay Put, Format Parts Do the Work
The neck-grip clamps need no adjustment between runs. To handle a different bottle neck size, you swap the filling valve's change parts and the capping mold — the two components actually built to be interchangeable.
Familiar PLC Brand, Your Choice of Language
The control system runs on a well-known PLC platform with a touchscreen that can be set to the operator's language of choice.
Technical Specifications
| Parameter | XGF 14-12-5 |
|---|---|
| Capacity | 5,000 bottles/hour @ 500ml |
| Bottle range | Vol. 100–2000ml, Ø50–100mm, H150–340mm |
| Cap | plastic screw cap Ø20–50mm |
| Main motor power | 3.5 kW |
| Power | 220V–480V, 3-phase, 50/60Hz, customizable |
| Overall dimensions | 2.05m × 1.8m × 2.4m |
| Machine weight | 2,500 kg |
| Material | 304 stainless steel | Gravity filling | Branded PLC |
Detail Display

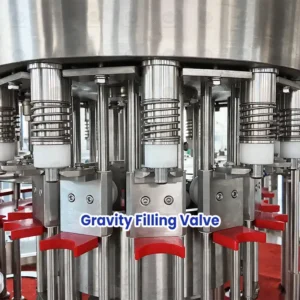

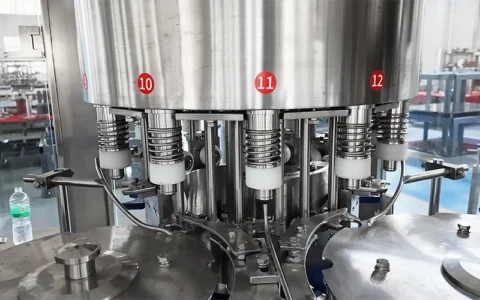

Spring-Loaded Gravity Filling Valve

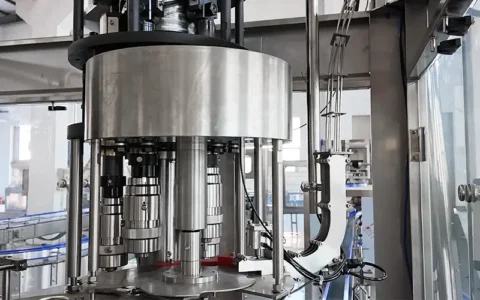

Capping Head with Swappable Mold

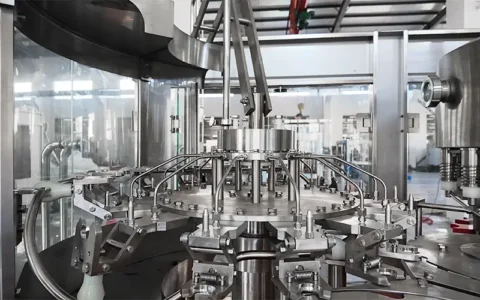

Rinsing Part
Frequently Asked Questions
PET bottles from 100–2000ml (Ø50–100mm, H150–340mm), with plastic screw caps Ø20–50mm. The neck clamps cover this range without adjustment; a different neck size just means swapping the filling valve's change parts and capping mold.
We offer remote troubleshooting — our engineers guide your operators through diagnostics over video call.
Yes, on-site installation and commissioning is included so the line runs to spec before we leave.
A 1-year warranty covers manufacturing defects, and we keep spare and wearing parts in stock long-term so a broken part is never a long wait.
Yes — CE and ISO certified, meeting the requirements for import into the EU and most international markets.
