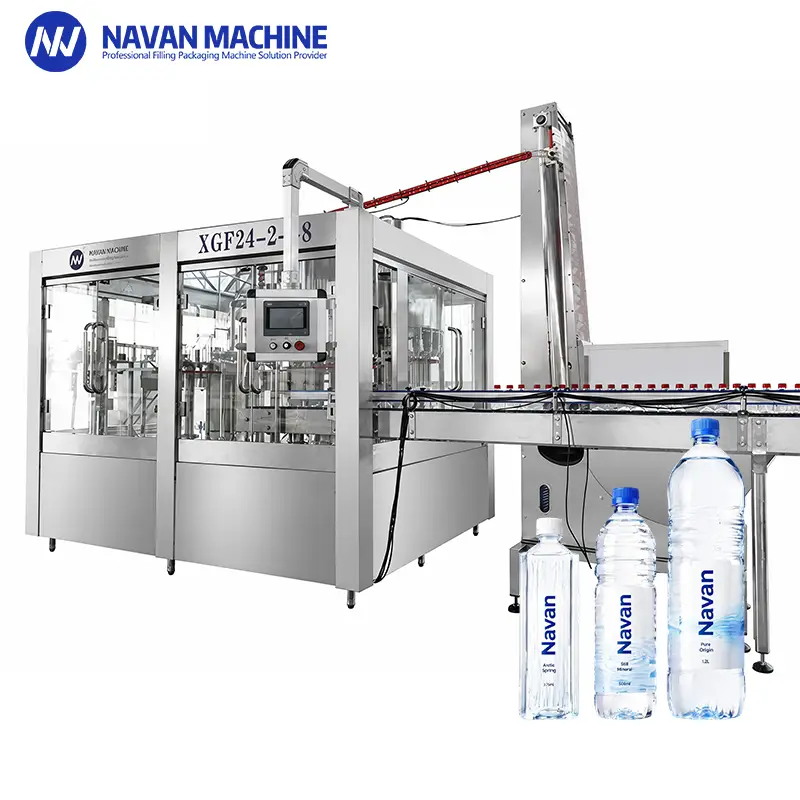

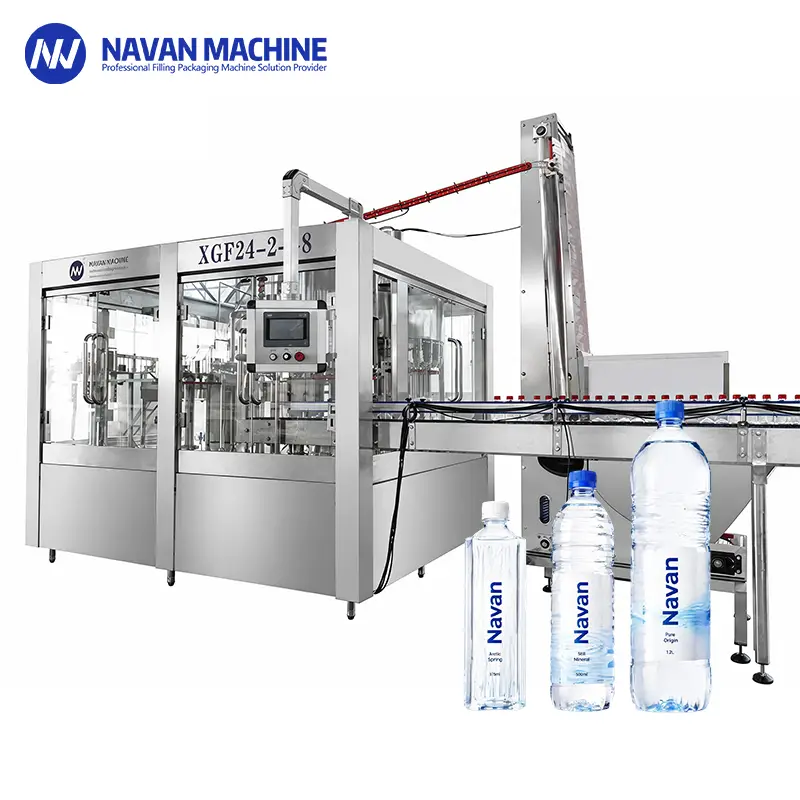

XGF 24-24-8 Automatic Water Filling Machine | 3-in-1 PET Bottle Rinsing, Filling & Capping

Ideal for small-to-mid bottled water and beverage producers scaling up from manual lines.

Model: XGF 24-24-8

Capacity: 10,000-12,000 BPH

Bottle Size: 100-200ml

Bottle Type: PET Bottles

Purified Water Mineral Water Tea Beverages Non-Carbonated Drinks

* We will reply to you within a maximum of 24 hours

Food-Grade 304 Stainless Steel Build

Every product-contact surface and the full machine frame are built in 304 stainless steel, giving you a corrosion-resistant, easy-to-sanitize machine that holds up to daily washdowns and meets food/beverage hygiene standards for years of continuous production.

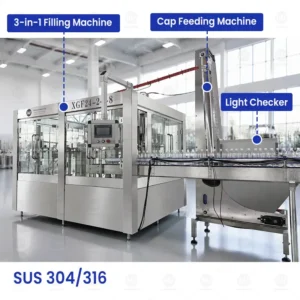

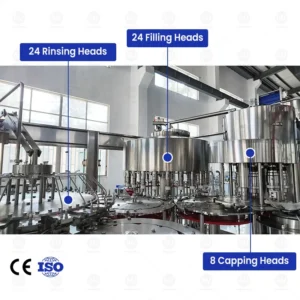

True 3-in-1 Monobloc: Rinse, Fill, Cap

Rinsing, gravity filling and capping are combined into a single compact unit instead of three separate machines. That means one motor system, one control cabinet, one footprint — less floor space, fewer changeover points, and a shorter, more hygienic bottle path from empty PET to sealed cap.

Spring-Loaded Gravity Filling Valve

The filling valve uses a leak-free spring structure with no dead corners and no dripping, so you get consistent fill levels across every bottle, minimal product loss, and a valve assembly that's fast to strip down and clean.

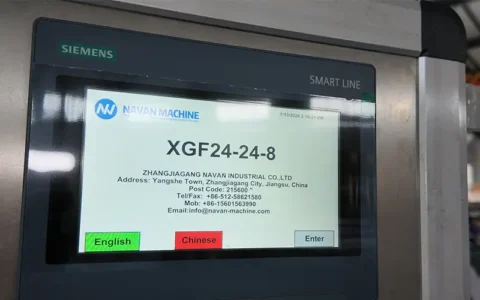

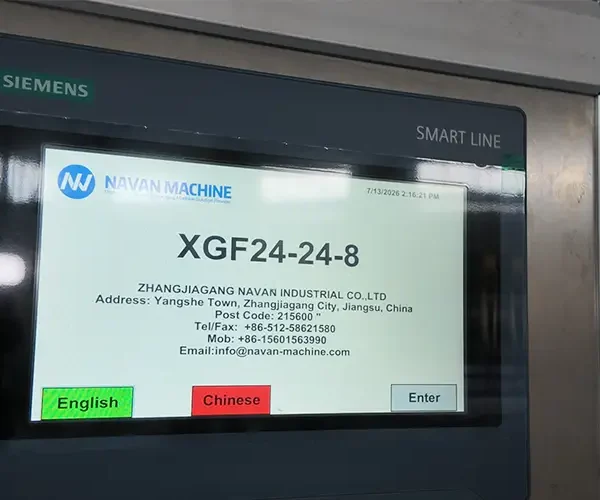

Branded PLC with Fast Cap-Format Changeover

A branded PLC touchscreen controls the whole line. The neck-grip clamps handle the full bottle-mouth range without needing to be swapped, and switching to a different cap type is just as simple — swap in the matching capping mold and you're running the new format in minutes.

Technical Specifications

Parameter	XGF 24-24-8
Capacity	10,000–12,000 bottles/hour @ 500ml
Bottle range	Vol. 100–2000ml, Ø50–100mm, H150–340mm
Cap	Plastic screw cap Ø20–50mm
Main motor power	4.8 kW
Power	220V–480V, 3-phase, 50/60Hz, customizable
Overall dimensions	2.78m × 2.2m × 2.2m
Machine weight	4,500 kg
Material	304 stainless steel \| Gravity filling \| Branded PLC

Download Brochure

Detail Display

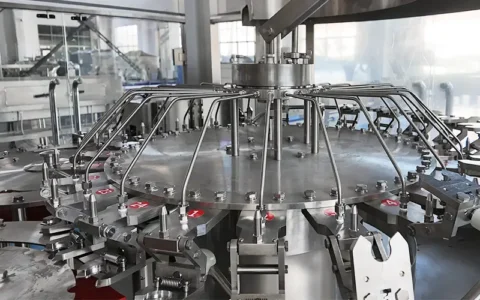

Fixed Neck-Grip Clamps

The star wheel's neck-grip clamps hold every bottle firmly by the neck ring and stay exactly as they are across different bottle shapes and sizes — no adjustment, no extra tooling, and no time lost resetting the grip when the bottle changes.

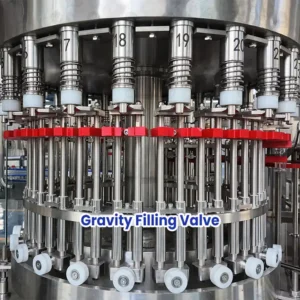

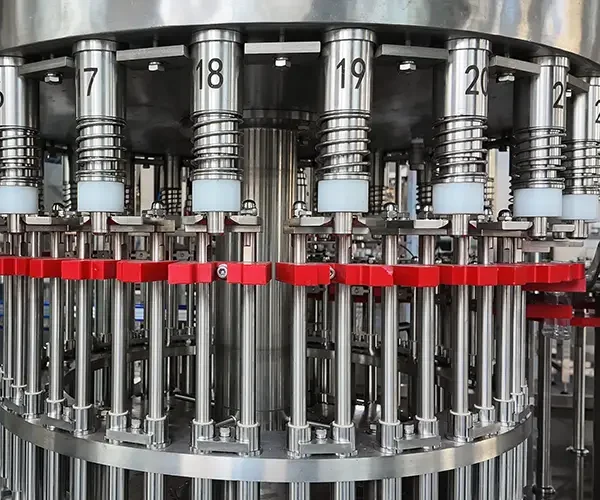

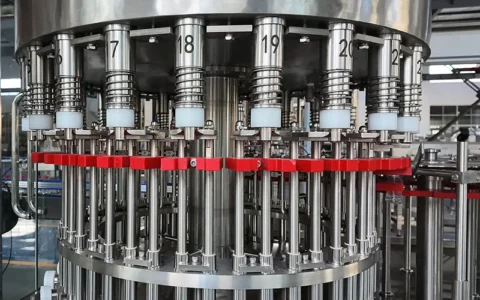

Spring-Loaded Gravity Filling Valve

The filling valve is a 304 stainless steel gravity valve with a spring-loaded, dead-space-free design. It keeps the fill level consistent in every bottle, prevents dripping between cycles, and disassembles quickly for cleaning.

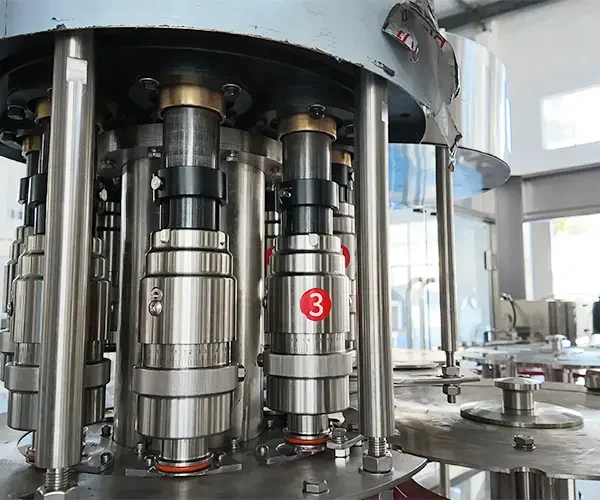

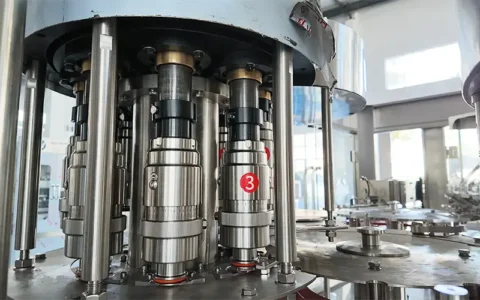

Swappable Capping Mold

The capping head seals bottles using a mold matched to the cap currently in use. To run a different cap size or style, only the mold needs to be swapped — the capping head itself stays the same.

Frequently Asked Questions

Is the XGF 24-24-8 certified for export?

Yes. The machine is CE and ISO certified, so it meets the safety and quality requirements for import into the EU and most international markets.

What warranty do you offer, and what happens if a part fails?

The XGF 24-24-8 comes with a 1-year warranty covering manufacturing defects. Beyond that, we keep spare parts and wearing parts in stock long-term, so replacements are always available — the machine is never left waiting on a part.

Can you install the machine at our factory?

Yes, we offer on-site installation and commissioning support so the line is set up correctly and running to spec before our engineers leave.

What if we have a problem after the installation team has left?

We provide remote assistance for troubleshooting — our engineers can walk your operators through diagnostics and fixes over video call, which resolves most issues without needing a return visit.

What bottle sizes and cap types does the XGF 24-24-8 handle, and how hard is it to switch between them?

It runs PET bottles from 100–2000ml (bottle diameter Φ50–100mm, height 150–340mm) with standard plastic screw caps from Φ20–50mm. The neck-grip clamps cover this whole bottle range as-is, with no clamp changeover needed. To switch to a different cap size or style, you simply fit the matching capping mold onto the capping head — a quick mold swap rather than a full changeover.
