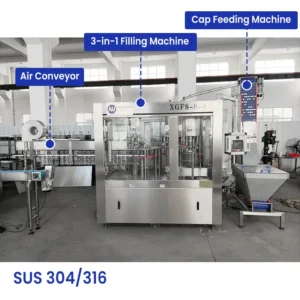

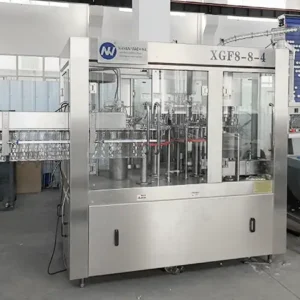

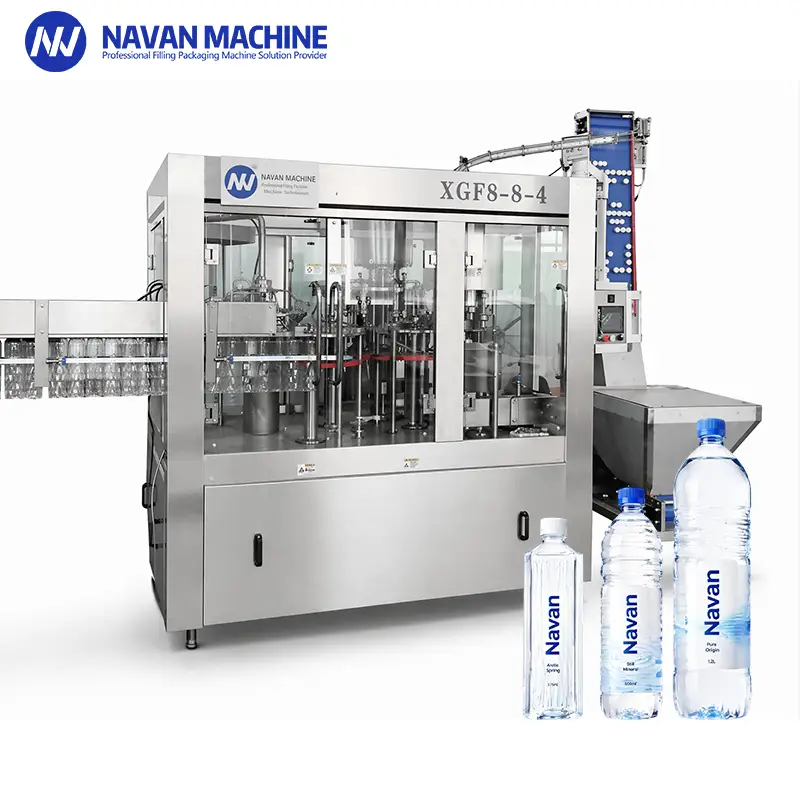

XGF 8-8-4 Automatic Water Bottle Filling Machine – Compact 3-in-1 Rinser, Filler & Capper

Perfect for startups and small water plants automating their very first line.

Model: XGF 8-8-4

Capacity: 2,500-3,000 BPH

Bottle Size: 100-200ml

Bottle Type: PET Bottles

Purified Water Mineral Water Tea Beverages Non-Carbonated Drinks

* We will reply to you within a maximum of 24 hours

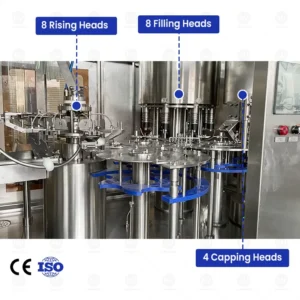

High-Pressure Inverted Rinsing

Bottles are flipped upside down and blasted inside with high-pressure water jets before filling — flushing out dust and debris without a single drop entering the finished product.

Fixed Neck-Grip Clamps

The star wheel's neck clamps hold every bottle firmly by the neck ring. There's nothing to loosen, realign, or swap out when you're simply running the same bottle day after day.

Gravity Filling with Quick Format Change Parts

Filling is done by gravity for accurate, leak-free levels. Moving to a different bottle neck size only means swapping the filling valve's change parts and the capping mold — a small, low-cost changeover for a factory just getting into automation.

Branded PLC, Any Operating Language

The touchscreen runs on a well-known PLC brand and can be set to your operators' preferred language — an easy machine to hand over to a first-time automated line crew.

Technical Specifications

Parameter	XGD 8-8-4
Capacity	2,500–3,000 bottles/hour @ 500ml
Bottle range	Vol. 100–2000ml, Ø50–100mm, H150–340mm
Cap	plastic screw cap Ø20–50mm
Main motor power	1.9 kW
Power	220V–480V, 3-phase, 50/60Hz, customizable
Overall dimensions	1.9m × 1.42m × 2m
Machine weight	1,500 kg
Material	304 stainless steel \| Gravity filling \| Branded PLC

Download Brochure

Detail Display

High-Pressure Inverted Bottle Rinsing

Shot of a bottle flipped mouth-down under the rinsing nozzles mid-cycle, water jets visible inside the bottle — shows the actual cleaning mechanism rather than just naming it.

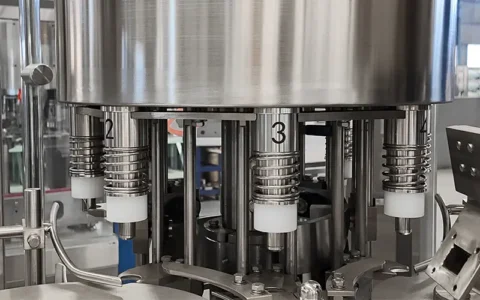

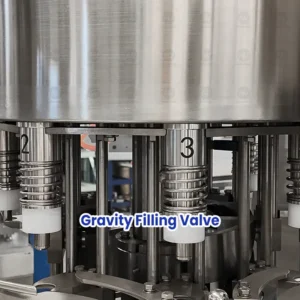

Spring-Loaded Gravity Filling Valve

Close-up of the 304 stainless steel filling valve in the open position, showing the spring mechanism and smooth bore with no dead space — the detail that proves "no dripping, easy to clean" rather than just claiming it.

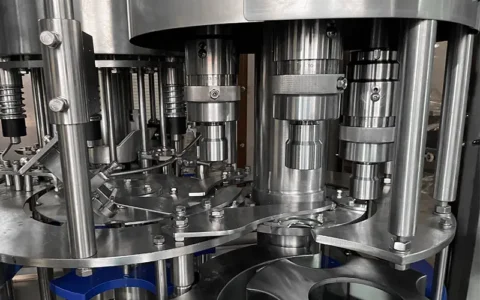

Swappable Capping Mold for Different Cap Types

Close-up of the capping head with a capping mold either mounted or being lifted out — shows buyers that adapting the machine to a different bottle cap is a simple mold swap, not a full retooling job.

Frequently Asked Questions

Is the XGF 8-8-4 certified for export?

Yes — it's CE and ISO certified, meeting the safety and quality requirements for import into the EU and most international markets.

What's covered under warranty, and what if a part fails later?

A 1-year warranty covers manufacturing defects. After that, spare and wearing parts stay in stock long-term, so the machine is never left waiting on a replacement.

Will someone install it for us?

Yes, we provide on-site installation and commissioning so the line is running to spec before our engineers head home.

What support do we get once your team has left?

Remote troubleshooting support — our engineers walk your operators through diagnostics over video call, which resolves most issues without a return visit.

What bottle and cap sizes can the XGF 8-8-4 run, and how do we switch between them?

PET bottles from 100–2000ml (Ø50–100mm, H150–340mm), with plastic screw caps Ø20–50mm. The neck clamps handle this whole range without adjustment; switching neck sizes just means swapping the filling valve's change parts and the capping mold.
